DL.2

Features

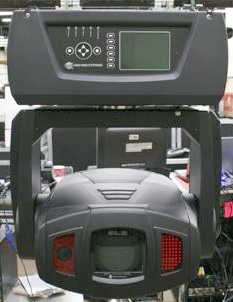

Full-Motion 5000 Lumen Digital Video Projection System

Integrated Media Server with 3D workspace

Loaded with over 950 stock media files

Loaded with almost 100 stock 3D objects

Built-in Camera for Live Video

Accepts custom content

Remote content management via PC and MAC

240 degrees tilt and 400 degrees pan

DL2 ships standard with a Super HAD sensor camera

The DL2 is 115lbs or 52.3kgs.

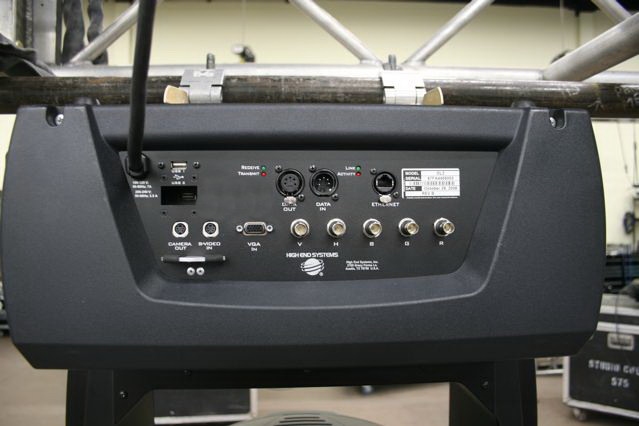

There are RGBHV, VGA, and S-video inputs. While the graphics engine will not process the RGBHV and VGA inputs (i.e. they are passed through directly to the projector), the S-Video input can be routed and manipulated through the graphics engine as another media source.

The DL2 has digital dimming as a graphics engine feature as well as an iris for total black out.

Intel Pentium 4 w/HT technology

2GB DDR2 RAM

It's a Seagate SATA drive

ATI Radeon X850 XT, this card is also the video capture card for the Sony camera.

Window XP embedde

Christie Digital LX50

5000 ANSI lumens

1200:1 Ratio full on/full off

Throw Ratio 1.8 – 2.4:1

Lamp 300 W NSH

4:3 native Aspect ratio with 1024 x 768 resolution

Built in Camera with Super HAD sensor technology

Resolution 768 x 494 pixels

Optical Zoom range18x

The camera has infrared (night vision) capabilities. Video captured using the Night Vision system is a monochrome image but can be colorized if a DL2 graphic engine filter is chosen. The IR illumination system is dim-able and controlled from the lighting console.
