The Y-10 is a sub-compact 3 way line array that is as powerful as a full sized array, featuring a single patented Adamson mid/high drive module (with 2 patents granted and 2 pending applications). The Adamson drive module has a co-axial entrance and a co-linear exit comprised of a high frequency sound chamber mounted within a mid frequency sound chamber. The drive module is powered by a proprietary 9" Kevlar mid and a JBL 2451 Compression Driver
. Together, the drive module and trapezoidal cabinet design create a smooth, slightly curved, seamless wave front with no gaps between cabinets.
The Y10 has a defined coverage pattern of 100 degrees by 5 degrees at -3db down. The vertical coverage is determined by the number of cabinets added to the array. The Y10 comes complete with a sliding hinge rigging system with six one-degree increments, you can achieve precise angular positioning by adjusting the extension of the sliding hinge while the front of the array remains closed.
Light aluminum dollies, and all the components for rigging the Y-Axis come standard. Y10 Waterproof Soft Covers with customized silkscreening and black powder coated aluminum rigging frames to support 16 or 24 Y10's are available as optional accessories.
Live Concert Reproduction
Down fill for Y18
Houses of Worship
Two Adamson ND-10 L Kevlar Neodymium Drivers
One JBL 2451 HF Driver
The Adamson Co-Linear Drive Module
One Adamson YX9 9 " Kevlar MF Driver
Aluminum Dolly Board
Stainless/Aluminum Slide Hinge Rigging
Used Adamson Systems Engineering
Brock Adamson's passion for sound has driven the evolution of Adamson Systems Engineering from a small speaker shop to a company invested in its own factory, with a broad engineering base and a wide range of computer controlled manufacturing machinery. Now Adamson is recognized as the most advanced manufacturer of loudspeaker systems in the industry.
A versatile range of products - from the highly acclaimed Y-Axis and SpekTrix true line source arrays to the SX and MH Series of conventional loudspeakers - has equated the Adamson brand name around the world with excellence and distinction.
- A connector allowing more than 2 electrical devices to be connected to a single power source. These connections are normally in parallel (each device is given the same voltage levels), but current is . Used . divided between them. Also known as a "Twofer".
3-way splitters are known as "Threefers".. Used . ...Roofs
- A roof is part of a stage used to provide shade and protection from the weather to the performers below.. Used . . Used . ...Prime Lens
- A lens whose focal length is fixed. Prime lenses are not as versatile as zoom lenses, but are generally superior in optical quality. This is due to the simplisity of design with fewer moving parts th. Used . at can be optimized for one specific focal length. . Used . ...Ohm
- A unit of measurement for the electrical resistance equal to that of a conductor in which a current of one ampere is produced by a potential of one volt across its terminals. One ohm is the resistanc. Used . e in a circuit when one volt maintains a current of one amp. The unit, originally ohma or ohmad, was first used by Charles Tilston Bright and Latimer Clark in 1861 and is still in use today.. Used . ...Zone System
- A unique method introduced by photographers Ansel Adams and Fred Archer around 1940 for determining the best exposure and correct development for an individual photograph by way of analysiing the subj. Used . ects luminosities in terms of ten gray tones or “zones” labled 0 to IX or zero to nine and visualizing them as print densities. The zone system gives photographers a systematic method for ac. Used . curately identifing the relationship between the way they see the photographic subject and the results they achieve in their finished works....
Used Line Array Speakers
Line array speakers make up a loudspeaker system to create a sound source that produces an evenly distributed sound output. The driver of each line array element is close enough to the driver of the next element to create constructive interference. The resulting sound waves go farther than sound waves from traditional loudspeakers.
Line array systems date back to the early days of research in acoustics. Many old town halls and public venues still have old line source boxes which were found to project voice well though they are much smaller than horn-loaded speakers.
These days, line array speakers use different drivers for high-, mid- and low-frequency passbands that must be in line. Each enclosure must be set up closely to form columns composed of these drivers. To increase the frequency range and maximum sound pressure, the number of drivers per enclosure must be increased.
The orientation of line array speakers may vary. Vertical arrays are excellent for focusing sound at audiences without wasting output energy on ceilings or empty air above the audience because of its very narrow vertical output with a normally-wide horizontal pattern. On the other hand, horizontal line arrays have a very narrow horizontal output with a tall vertical pattern.

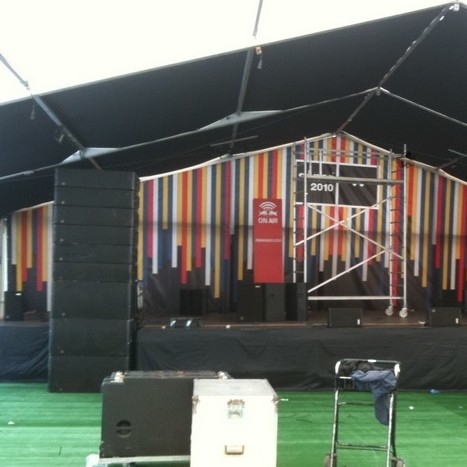

For hanging concert speakers which are usually part of a concert reinforcement system, enclosures are set up together using a specialized rigging hardware and they hang from a single point. These line array speakers are curved backward at the lower portion so that the sound will reach more audience.
