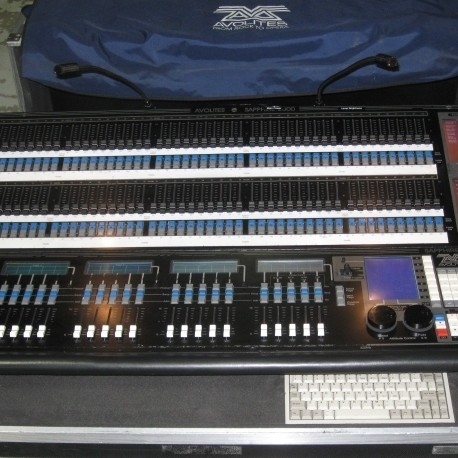

Channels : 2048
Protocols : DMX
Midi : In/Out
Timecode : Yes
DMX Input : Yes
Software : User Upgradeable
Backup : 3.5" Floppy
Displays : 1 Monitor and 7 LCD
Trackball/Wheels : Wheels (2) plu
S Faders (100)
Grandmaster : 1
Submasters : 20 Playback Submasters per page
Graphics Tablet : Yes
External keyboard : Yes
External Mouse : No
Fixture Format : Personality
Effects Generator : Yes (100)
Auto Move When Dark : No
Playbacks : 3 plus 20 Playback Submasters
Macros : No
IFCB Filters : No
LTP/HTP : Both
Blind Mode : Yes
Quickfocus : No
Preset Focuses : IFCB (200)
Off Line Editor : No
Used Avolites
olites are dedicated to producing the very best control solutions for all aspects of the professional lighting industry.
The company has focused on, listened to and built upon end-user feedback which has allowed continual development and evolution of the product range. Avolites equipment utilises cutting-edge technology whilst retaining the accessible, intuitive, hands-on familiarity for which Avolites' products have become popular and renowned.
Avolites also believe 'the people' part of the equation is vital in ensuring their position as market leader is maintained. The company comprises a creative, motivated, positive and lateral thinking team of individuals who will ensure a successful and progressive future for the company.
Zone Focusing - Technique for focusing a lens so that the field depth extends over a predetermined scope of distances making an entire area, or zone, in focus rather than one specific subject. . Used . . Used . ...
Other Effect - Any audio effect not otherwise defined or described.. Used . . Used . ...
Working Lights - Stage or auditorium lights, independent of the main theatrical system, used during rehearsals and while the crew sets up or breaks down the stage. Also, low wattage lights used to illuminate offstage. Used . obstacles and props tables unseen by the audience.. Used . ...
Ethernet - Ethernet (this name comes from the physical concept of ether) is a frame-based computer networking technology for local area networks (LANs). It defines wiring and signaling for the physical layer, an. Used . d frame formats and protocols for the media access control (MAC)/data link layer of the OSI model. Ethernet is mostly standardized as IEEEs 802.3. It has become the most widespread LAN techno. Used . logy in use during the 1990s to the present, and has largely replaced all other LAN standards such as token ring, FDDI, and ARCNET. ...
Triangular - A triangular truss is so named because of its triangular shape, having three main support bars.. Used . . Used . ...
Used Lighting Consoles
Lighting consoles are electronic devices for controlling multiple lights simultaneously from one point. Dimmers for controlling lighting intensity, automated lighting, fog machines and hazers are some of the special effects lighting devices controlled by a lighting board or lighting desk (other terms for lighting consoles).
An electronic control protocol is used by lighting consoles to communicate with other devices in the lighting system. Some of these are DMX512, ACN and DMX-512-A. New protocols are being introduced as more sophisticated lighting systems become available.
In the entertainment industry, where theatrical lighting design is mostly used, lighting consoles are usually found in the control booth, auditorium or the foyer. For this application, the most common protocol is DMX512.
Lighting consoles are available in different sizes and complexities. A preset board, a conventional console for basic lighting systems, is used mostly for small setups. However, DJs may complement it with more advanced hybrid consoles. A moving light controller works with dimmers for controlling ordinary lighting. It also provides additional controls for automated stage lighting (also called intelligent lighting) to produce very complex lighting effects. Other types of lighting consoles include memory consoles, personal-control based controllers, and remote focus unit.
The light board operator (also called the light op or board op) is the person who operates the lighting console. Depending on the scale and type of production, he can be the lighting designer or the stage manager. He or she is responsible for conventional or automated lighting fixtures as well as controlling video.
