Used D5 Live CS D5 Package

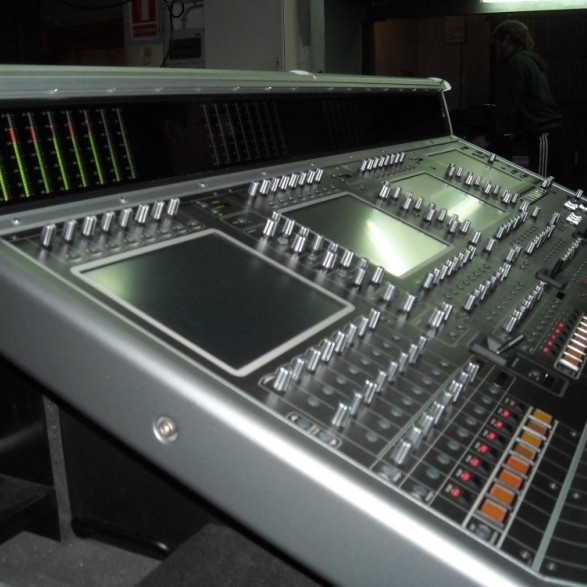

D5 Live CS D5

The CS-D5 Live digital mixing system provides the full, extensive feature set of the D5 Live, with the exception of the optical I/O, creating a D5 Live at a price point that's competitive with more basic consoles.

The CS-D5's technical advantages include a full 48 busses – ideal for coping with the ever-increasing use of in-ear Monitors, 128 input channels, which can be increased with extra DSP to 160.

224 inputs and 224 outputs can be connected to enable large routing capabilities for multi-stage events and large orchestral performances, while digital redundancy ensures the show will go on.

41 touch sensitive faders, four touch screens and multi-operator ability give direct instant access to crucial parameters, despite the compact frame size.

MADI (standard) and Optocore™ (optional) interfacesimprove versatility compared to proprietary systems, and the ability to share Stage Racks integrates live performance, broadcast, FOH and Monitors – and eliminates the need for mic splitters.

Sound quality remains peerless, with the CS-D5's 40-bit floating point audio processing maintaining far greater dynamic range in a complex mix than other consoles' fixed point processing.

Used DigiCo

DiGiCo (UK) Limited brings together the design and development skills that have helped create some of the world's most popular, successful and ground-breaking live sound consoles, with the digital engineering expertise and manufacturing resources of Soundtracs. The company was formed in 2002 to develop the D5 Live digital mixing system, a revolutionary approach to both the live sound console and the way it interfaces with both ends of the audio chain. In basing a console around a powerful DSP engine using proven Soundtracs hardware and software, but with features dedicated to live sound mixing, DiGiCo created the world’s first truly open-ended console system, for which additional features will be made available in new software versions. This design philosophy ensures your investment in state of the art audio technology today will remain state of the art in the future. The D5 Live from DiGiCo: science dedicated to advancing the art of live sound engineering. Soundtracs was formed in the early 1980s by a group of recording engineers in search of a better studio console than those available at the time. The team’s success led to two decades of audio innovation and, in 1992, its first development of a digital audio mixing console. In 1996 this program led to the launch of the acclaimed Virtua console, followed a year later by the DPC, in 1998 the DS3 and in 2000 the D4. Since 2000 the company’s product range has been based entirely on digital audio. Along the way a host of new technologies has been introduced, including the first use by a console manufacturer of the revolutionary Sharc DSP from Analog Devices, a faster, more efficient processor than any then on the market, the first (and still the most comprehensive) use of multiple TFT LCD touchscreens, a pioneer in the use of a 96kHz sample rate, and the first to run multiple sample rates simultaneously. This is just some of the experience that has gone into creating the D1 Live digital mixing system, the latest innovation from one of the pioneers of professional digital audio.

Wing - A breakout box or extension console that expands the current consoles capabilities by adding additional tactile faders and controls. Generally applied to lighting control consoles and adapted from a . Used . theater term used to describe the sides of the stage not visible to the audience where the actors make their entrances. . Used . ...

Controllers - A hoist or motor controller is a machine for raising and lowering personnel or gear by means of a cable for the purpose of setting the gear in place on a truss or stage.

. Used . . Used . ...

Hertz - A unit of measure for frequency generally applied to waveforms, one Hertz is equal to one cycle in one second. It is abbreviated Hz so that 100 Hz would be 100 cycles per second. However, the unit m. Used . ay be applied to periodic events other than waveforms like the second hand on a clock, which would cycle at 1 Hz, or a human heart that may beat at 1.2 Hz. Named after the German physicist H. Used . einrich Rudolf Hertz, the name was established in 1930, but did not replace the term cycles per second until the 1970s.

...

XLR - A type of rugged multipin metallic connector for sound and lighting equipment generally having 3 pins for audio applications and 5 pins for DMX lighting. XLR plugs are very effective at reducing data. Used . and noise errors because a comparison is made between the signals carried by two of data cables, canceling out any differences. This relationship has given rise to the misnomer that XLR sta. Used . nds for eXternal Live Return. However, these connectors, sometimes called Cannons after the original manufacturer were originally called the Cannon X series, later versions added a Latch making the Cannon XL ...

Converters and Sync - An audio converter is a type of electronic hardware that converts analog audio signals to digital audio format or vice versa. Audio synchronizers arrange the signals, either analog, digital or both, s. Used . o that multiple the signals occur in time. . Used . ...

Used Audio Mixers

Audio mixers, or sound consoles, are electronic sound mixing boards used to combine two or more audio signals, before directing them to the output channels connected to the device. Sound consoles do a great deal more than just combining different audio signals – they allow users to optimize the sound output in a number of ways – adjusting various sound levels, enhancing sound with special effects and equalization etc, allowing for unmatched control over the end product. When there is a need for high quality sound control and output, audio mixers are an essential item for audio team. Mixing desks are used on stage in live concerts to combine the sound input from various musical instruments in to a stereo master mix. For TV and movie studios, sound consoles are essential to combine the various sounds from the numerous different microphones that will be used. Audio mixers are available in a wide range of different shapes, sizes and designs, beginning with smaller units designed for portability, right up to the enormous sound consoles used in recording studios. The term audio mixer actually refers to any kind of sound mixing board, whereas a sound console is usually a device which sits permanently on a desk. Technicians usually differentiate audio mixers according to how many channels they have. Fairly standard in the recording industry is the 12-channel mixer, in which you can hook up a total of 12 input sources. Sound consoles can also be more specified – for example, a 24 x 4 x 2 mixer has 24 inputs, 4 sub-group channels and 2 output channels.
