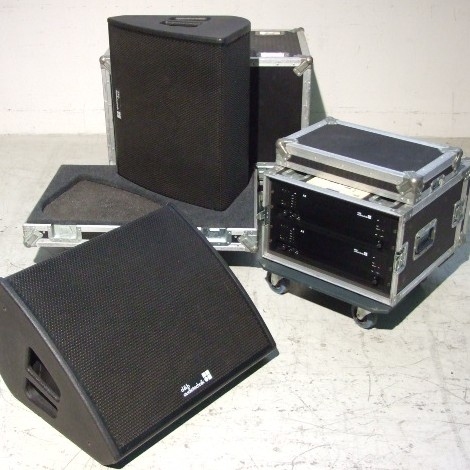

The M2 is a 2-way high performance stage monitor, with a peak sound pressure level of 143 dB. Its design uses a low height cabinet, achieves a constant directivity of 45deg x 60deg > 600 Hz and significantly raises the feedback stability margin. Together with the cabinets baffle angle of 40deg (to floor), the dispersion performance offers a realistic artist listening area starting directly above the cabinet and reaching quite far upstage. The result is a loudspeaker system with remarkable vocal presence, clarity and neutral, balanced sound. The M2 cabinet is constructed from marine plywood, incorporates handles and has an impact resistant paint finish. Two fittings, which accept ball-lock shackle pins, are located on each side of the cabinet allowing quick and flexible rigging
Used D and B Audiotechnik
d&b audiotechnik has been developing, manufacturing and distributing loudspeaker systems since 1981. The company operates internationally in the field of electroacoustics to produce high quality products for reinforcement of speech and music. Through the amalgamation of technological developments, system integration principals, quality of construction and standards of service, d&b pursues a systems approach that includes all aspects of design, development, manufacture and support. d&b's loudspeakers are used globally in rental and installation markets for events, multimedia, musicals, concert halls, theatres, opera houses, broadcast and everything from the smallest conference room to the largest stadium.
- A Bulb or light bulb is a source of artificial light. There are many different kinds of bulbs including High Intensity Discharge or HIDs, Halogen, Fluorescent and Light Emitting Diodes, but the most . Used . common is the incandescence that works by the release of electromagnetic radiation. . Used . ...DMX-512
- DMX512, often shortened to DMX (Digital MultipleX), is a communications protocol used mainly to control stage lighting.
Developed by the Engineering Commission of USITT, the standard star. Used . ted in 1986, with subsequent revisions in 1990 leading to USITT DMX512/1990. ESTA took control of the standard in 1998 and began a revision process. The new standard, known officially as "Ent. Used . ertainment Technology — USITT DMX512–A — Asynchronous Serial Digital Data Transmission Standard for Controlling Lighting Equipment and Accessories", was approved by ANSI in November, 2004. This current standar...Preset Boards
- Preset boards are the most basic lighting consoles - and also the most prevalent in smaller installations. They consist of two identical fader banks, called 'scenes.' The faders (control slides) on th. Used . ese scenes can be manually adjusted. Each scene has the same number of channels which control the same dimmers, but only one is live at a time, so the console operator can build a scene, then. Used . fade to it. These scenes are often referred to as A-scenes and B-scenes, and a cross-fader is used to fade between the A and B scene.
Generally, a preset board operator has a cue sheet for each s...LED
- An LED or light emitting diode is simply a tiny light bulb that fits into an electrical circuit. However, unlike ordinary bulbs, LEDs don't have a filament that will burn out and generate very little . Used . heat. They are illuminated by the movement of electrons in a semiconductor material and last as long as a standard transistor.. Used . ...Volt
- A unit in the international system representing the electric potential and electromotive force equal to the difference of electric potential between two points on a conducting wire carrying a constant. Used . current of one ampere when the power dissipated between the points is one watt. Named after Alessandro Volta for his work with batteries, the term was adopted in the 1880s and is still in u. Used . se today....
Monitors are commonly known as â??stage monitorsâ?ť. Stage monitors are the speakers used on stage that are directed towards the performers so that they can hear themselves while playing. This allows them to monitor how well they are playing. Usually, the monitor speaker is needed when instruments with amplifiers are used in combination with acoustic instruments and the voice. These monitors on stage usually have built in amplifiers and equalizers. These monitors specifically highlight the vocals and the sound of the acoustic instruments so they wonâ??t be enveloped completely by the drums or the other electronic instruments. The audio wedge, wedge monitor, stage wedge, amplifiers, equalizers and monitor mixers all comprise the stage monitor system.
There are two types of monitor speakers: the floor monitors and side fill monitors. Usually speakers on stage are heavy duty and require high input power to be able to generate high volume sounds. The floor monitors are the speakers that are placed on the floor. They are compact with the angle back design. Because of its angle appearance, it is also known as â??wedgeâ?ť. The smaller singular speakers are called the â??hot spotâ?ť monitor that is usually placed on the microphone stand so the performers can easily hear themselves. The two way heavy duty speakers have the woofer and the high frequency horn. The side fill monitors are those found at the upright side of the stage and these allow sound to be heard in places that the floor monitors cannot cover.
