Used Y10 Complete System

Y10

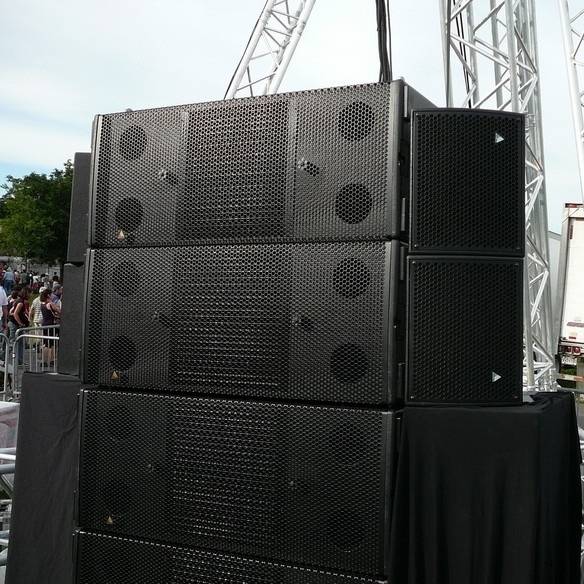

The Y-10 is a sub-compact 3 way line array that is as powerful as a full sized array, featuring a single patented Adamson mid/high drive module (with 2 patents granted and 2 pending applications). The Adamson drive module has a co-axial entrance and a co-linear exit comprised of a high frequency sound chamber mounted within a mid frequency sound chamber. The drive module is powered by a proprietary 9" Kevlar mid and a JBL 2451 Compression Driver. Together, the drive module and trapezoidal cabinet design create a smooth, slightly curved, seamless wave front with no gaps between cabinets.

The Y10 has a defined coverage pattern of 100 degrees by 5 degrees at -3db down. The vertical coverage is determined by the number of cabinets added to the array. The Y10 comes complete with a sliding hinge rigging system with six one-degree increments, you can achieve precise angular positioning by adjusting the extension of the sliding hinge while the front of the array remains closed.

Light aluminum dollies, and all the components for rigging the Y-Axis come standard. Y10 Waterproof Soft Covers with customized silkscreening and black powder coated aluminum rigging frames to support 16 or 24 Y10's are available as optional accessories.

Applications
Live Concert Reproduction
Down fill for Y18
Theaters
Houses of Worship
Large Clubs

Features
Two Adamson ND-10 L Kevlar Neodymium Drivers
One JBL 2451 HF Driver
The Adamson Co-Linear Drive Module
One Adamson YX9 9 " Kevlar MF Driver
Aluminum Dolly Board
Stainless/Aluminum Slide Hinge Rigging

Used Adamson Systems Engineering

Brock Adamson's passion for sound has driven the evolution of Adamson Systems Engineering from a small speaker shop to a company invested in its own factory, with a broad engineering base and a wide range of computer controlled manufacturing machinery. Now Adamson is recognized as the most advanced manufacturer of loudspeaker systems in the industry. A versatile range of products - from the highly acclaimed Y-Axis and SpekTrix true line source arrays to the SX and MH Series of conventional loudspeakers - has equated the Adamson brand name around the world with excellence and distinction.

Depth of Field - While a lens focuses on a single plane of depth, there is usually an additional area in focus behind and in front of that plane. This is depth of field. Depth of field increases as the iris is closed.. Used . There is more depth of field the wider the lens and le . Used . ...

Software Console - Softare Lighting Consoles act just like hardware lighting consoles except that they are software driver and usually run off of a desktop or laptop computer accompanied by a DMX converter. Lighting con. Used . trol consoles (also called lighting boards or lighting desks) are electronic devices used in theatrical lighting design to control multiple lights at once. They are used throughout the entert. Used . ainment industry and are normally placed at the FOH position or in a control booth. All lighting control consoles can control dimmers which, in turn, control the brightness of the lights. Many modern consoles ...

House Lights - House lights are incandescent or fluorescent floodlights. House lights provide light for the audience before and after performances and during intermissions. Work lights provide general lighting backs. Used . tage, or in the house. House lights are often controlled by dimmers, but are sometimes on simple switches. Work lights are almost always switched only. House and work lights are usually off d. Used . uring performances but are occasionally included in the lighting design to establish focus or emphasize plot elements. ...

Followspot - Followspot is a generic term used to describe any number of lighting instruments used to highlight performers on stage. A followspot operator moves the followspot to follow the performer or to accent. Used . some action or prop etc. Somtimes called limes, dating back to the days of limelight.

Followspots are generally much brighter than conventional lighting instruments, and often u. Used . se a lamp with a considerably higher color temperature.

Incandescent light bulb - The incandescent light bulb (archaically known as the electric lamp) uses a glowing wire filament heated to white-hot by electrical resistance, to generate light (a process known as thermal radiation . Used . or incandescence). The bulb is the glass enclosure which keeps the filament in a vacuum or low-pressure noble gas, or a halogen gas in the case of quartz-halogen lamps (see below) in order to. Used . prevent oxidisation of the filament at high temperatures. In Australia and South Africa a light bulb is also called a light globe.

Because of its poor efficiency and yellowish color, it is being ...

Used Line Array Speakers

Line array speakers make up a loudspeaker system to create a sound source that produces an evenly distributed sound output. The driver of each line array element is close enough to the driver of the next element to create constructive interference. The resulting sound waves go farther than sound waves from traditional loudspeakers. Line array systems date back to the early days of research in acoustics. Many old town halls and public venues still have old line source boxes which were found to project voice well though they are much smaller than horn-loaded speakers. These days, line array speakers use different drivers for high-, mid- and low-frequency passbands that must be in line. Each enclosure must be set up closely to form columns composed of these drivers. To increase the frequency range and maximum sound pressure, the number of drivers per enclosure must be increased. The orientation of line array speakers may vary. Vertical arrays are excellent for focusing sound at audiences without wasting output energy on ceilings or empty air above the audience because of its very narrow vertical output with a normally-wide horizontal pattern. On the other hand, horizontal line arrays have a very narrow horizontal output with a tall vertical pattern. For hanging concert speakers which are usually part of a concert reinforcement system, enclosures are set up together using a specialized rigging hardware and they hang from a single point. These line array speakers are curved backward at the lower portion so that the sound will reach more audience.
