Used 700-HP Package

700-HP - Pair of 700-HPs in LIKE NEW Condition!
700-HP - Excellent Condition Units. Ability to Request...
700-HP - Pair of 700-HPs in LIKE NEW Condition!

700-HP

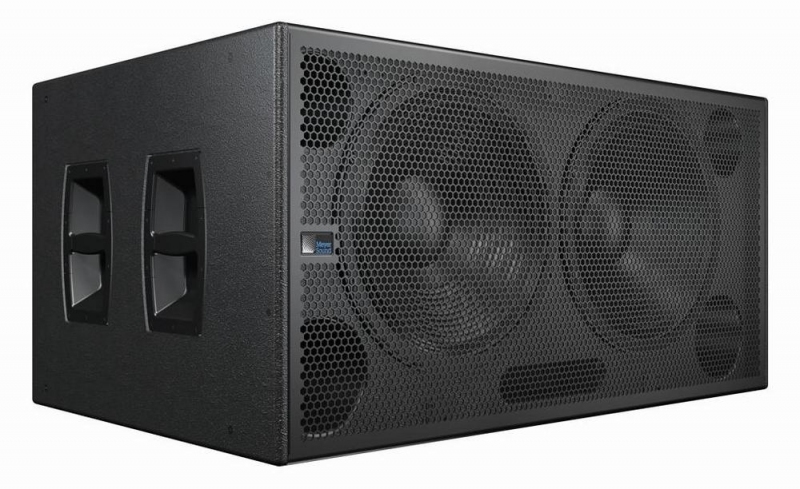

The Meyer Sound 700-HP ultrahigh-power Subwoofer sets a new standard for the power-to-size equation. The 700-HP's power and bandwidth handle high continuous operating levels and extreme transient information with minimal distortion in its operating frequency range.

Meyer Sound's rigorous design approach has been applied to extract the greatest efficiency from every part of the system, resulting in the 700-HP's effortless reproduction of low frequency transient information. As a self-powered system, the transducers, amplification and control electronics of the 700-HP are created as a symbiotic system that optimizes performance and maximizes its tremendous power.

The operating frequency range of 28 Hz to 150 Hz complements other Meyer Sound loudspeakers and line and curvilinear arrays in sound reinforcement applications requiring maximum headroom at the low end of the frequency spectrum.

The 700-HP's efficiently tuned cabinet houses two Meyer Sound-designed and -manufactured back-vented, long-excursion, 18-inch cone drivers. Each driver features a 4-inch voice coil and is rated to handle 1200 AES watts. The drivers have also been engineered for extreme efficiency, using high-gauss neodymium magnets for the most powerful magnetic field strength. High magnetic field strength increases the driver's sensitivity, which yields greater output, while keeping heat dissipation requirements within operational tolerances.

An integral two-channel class AB/H amplifier with complementary MOSFET output stages supplies total peak power of 2250 watts (1125 watts per channel). With twice the amplifier power of the 650-P Subwoofer, the 700-HP produces an average of 3 dB more overall SPL, with enormous headroom to accommodate the most extreme demands with ease. Recent tests conducted by Meyer Sound show the 700-HP producing significantly higher output than other "high-power" Subwoofers.

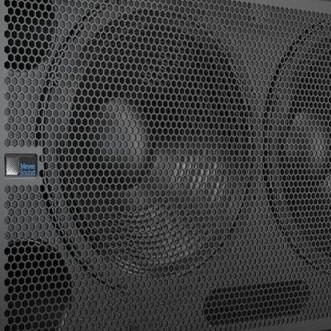

The amplifier, control electronics and power supply are integrated into a single, field-replaceable module mounted in the rear of the cabinet. The cabinet is constructed of multi-ply hardwood and coated with a textured black finish. Integral metal grilles lined with acoustical black mesh protect the cone drivers. Designed mainly for stage or ground placement, the stackable 700-HP includes plastic skids on the bottom of the unit, preventing damage to the enclosure or the unit below. The skids align with slots on the cabinet's upper surfaces ensuring secure, aligned stacking. For maximum convenience in touring situations, the 700-HP can even travel in stacks on the MCF-700 caster frame.

The 700-HP is truck-smart, with exterior cabinet dimensions suitable for both European and US truck widths. An optional QuickFly rigging kit is available, installed at the factory or as a field upgrade. Up to 10 cabinets can be suspended from the optional MTG-700 Top Grid in a straight hang at a 7:1 safety factor.

Options available for the 700-HP include weather protection and finishes in custom colors for fixed installations and other situations requiring specific cosmetics.

An optional RMS remote monitoring system module allows comprehensive monitoring of all key system parameters on any RMS-equipped host PC. In addition, Meyer Sound's MAPP Online multipurpose acoustical prediction program allows quick prediction of coverage, frequency response, imPulse response and maximum output of the 700-HP and other Meyer Sound loudspeakers and loudspeaker systems.

Used Meyer Sound

Established by John and Helen Meyer in 1979, Meyer Sound has been at the forefront of innovation in audio engineering for over two decades. From the outset, Meyer Sound looked beyond loudspeaker cabinet design to create totally integrated, systems-comprehensive solutions that encompass transducer design, signal processing, power amplification and even electroacoustic measurement systems. As a result, Meyer Sound's engineering teams have earned an enviable reputation for developing unique, innovative solutions to some of the most difficult problems confronting audio professionals. In fact, it is fundamental to John Meyer's philosophy that no component of a system should be compromised in order to compensate for variables "upstream" or "downstream." Instead, the entire system should be conceived, designed, tested, confirmed and manufactured as a whole to provide the optimum blend of audio fidelity, utility and long-term reliability.

Wing - A breakout box or extension console that expands the current consoles capabilities by adding additional tactile faders and controls. Generally applied to lighting control consoles and adapted from a . Used . theater term used to describe the sides of the stage not visible to the audience where the actors make their entrances. . Used . ...

Subtractive Color - Subtractive color explains the theory of mixing paints, dyes, inks, and natural colorants to create colors which absorb some wavelengths of light and reflect others. The color that an object appears t. Used . o have is based on what parts of the electromagnetic spectrum are reflected by it, or conversely by what parts of the spectrum are not absorbed.

Anything that is not additive col. Used . or is subtractive color. No other color mixing systems are known, except the imperfect system resulting from mixing real pigments, something that is very confusing nowadays.

Color is not an absolu...

House Lights - House lights are incandescent or fluorescent floodlights. House lights provide light for the audience before and after performances and during intermissions. Work lights provide general lighting backs. Used . tage, or in the house. House lights are often controlled by dimmers, but are sometimes on simple switches. Work lights are almost always switched only. House and work lights are usually off d. Used . uring performances but are occasionally included in the lighting design to establish focus or emphasize plot elements. ...

Zoom Flash - A flash with the capability of adjusting the width of its beam to accurately fit the angle of the lens being used.. Used . . Used . ...

Cabinets - A cabinet is a loudspeaker enclosure designed to prevent sound waves from the rear of the speaker combining with the sound waves from the front of the speaker creating
interference that would c. Used . ause the efficiency of the speaker to be compromised.. Used . ...

Used Subwoofer

Subwoofers are speakers that are designed to reproduce low-pitched or the bass frequencies typically ranging from about 20 to 200 Hz for consumer products, below 100 Hz for professional live sound, and below 80 Hz in THX-approved systems. These are complete loudspeakers intended to enhance the low frequency range of loudspeakers covering higher frequency bands. Subs, another term for subwoofers, are made up of one or more woofers in a loudspeaker enclosure capable of withstanding air pressure while resisting deformation. These subs require more power to operate because they are bigger (usually between 20.3 cm and 38.1 cm in diameter). Enclosures are available in a variety of designs that differ by efficiency, bandwidth, size and cost. Designs include bass reflex with a port or passive radiator in the enclosure, infinite baffle, horn-loaded, and band pass designs. A multimedia home theater system in low-cost compact plastic cabinet that is said to be a subwoofer is more appropriately called a bass driver because it is too small to produce deep bass. Subwoofers are also powered by amplifiers. Active or powered subwoofers are driven by a built-in amplifier. Passive subwoofers have an external amplifier, subwoofer drivers and enclosures. Subwoofers are popular because of they can pack a large, low frequency punch in a small space, providing a powerful audio experience like being in a movie theater or a concert venue. They are installed in cars or at home as part of a home theater system which is a more common application. In both cases, the subwoofer or low frequency speaker is not considered a stand alone device but helps to reinforce the higher pitched sound produced from the speakers.
