Used LP-X48

LP-X48 - The Leprecon LP-X Series Consoles are Designe...
LP-X48 - Great Lil' Console At A Great Price
LP-X48 - Used Once!
LP-X48 - Console + Case and Monitor
LP-X48 - Demo Board
LP-X48 - Corporate Rentals only with Case + Touch Scre...
LP-X48 - MINT Condition with 15 inch touchscreen

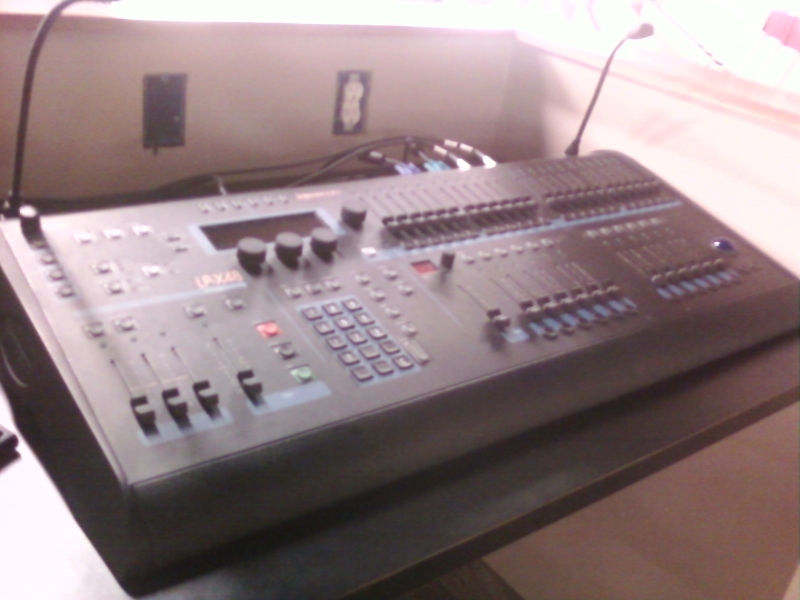

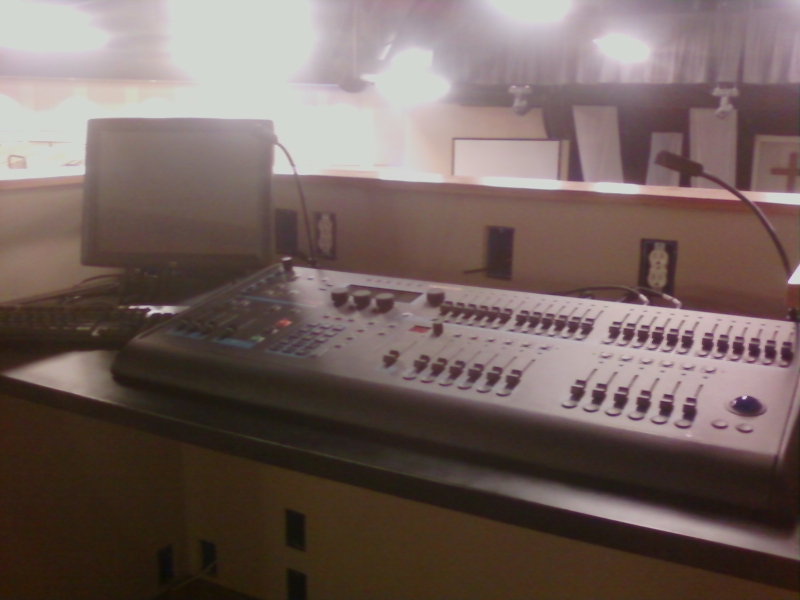

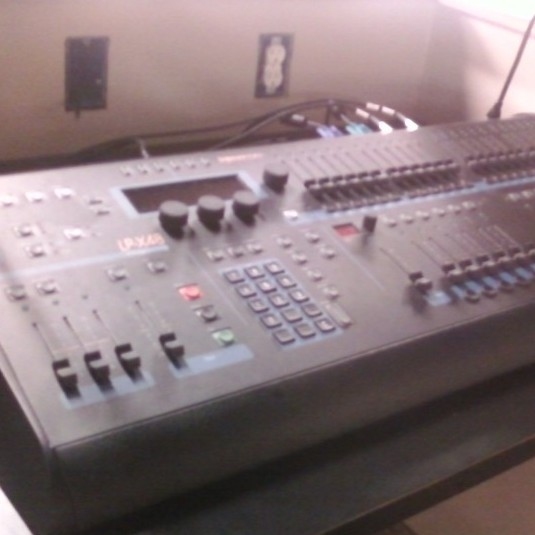

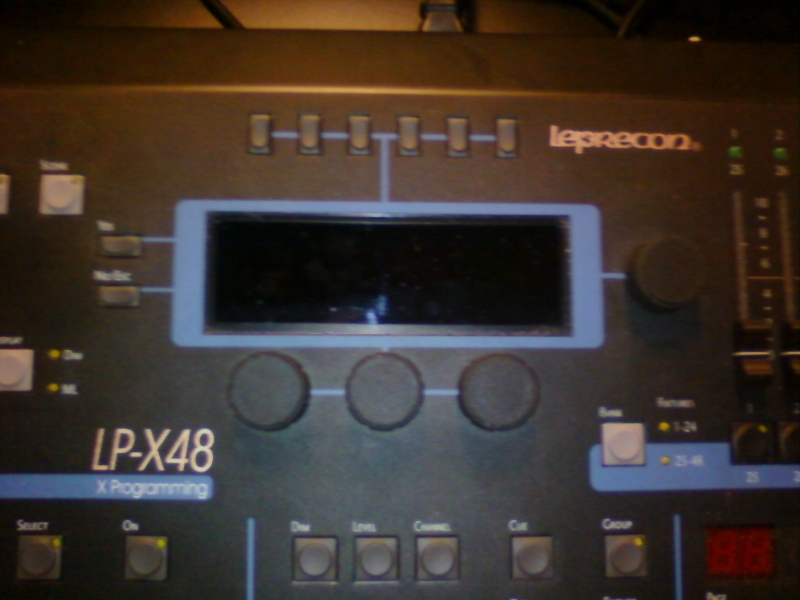

LP-X48

LP-X48

ACCESS TO DIMMERS VIA FADERS
Allows quick adjustment of 48 control channels during the show or when programming.
VIRTUAL CHANNELS
Conventional channels will not be limited to the number of front panel faders. You can access up to 192
control channels via the keypad at anytime.
20 PAGES OF 12 PLAYBACKS
Each Playback is capable of containing a virtually unlimited number of steps that are able to include looks
from Moving Lights, Scrollers, & Conventional Instruments. Steps from within each playback can be
activated via the 'Select Button' or they can be automated with timing triggers with Loop and Link
functions.
THEATRICAL STYLE CUE STACK
Familiar user interface for executing cues containing Moving Light, Scroller, & Conventional Instrument
looks. The Cue Stack can be used independently or in conjunction with the 12 Playbacks.
VGA, BACKLIT-TRACKBALL, & KEYBOARD SUPPORT
VGA Output-Offers increased viewing and access to Show Playback, Recording, & Editing.
Trackball-Ergonomically positioned for comfortable on screen navigation.
Keyboard Support-Used to name Labels (Palettes), Playbacks, & numerical data, such as timing
parameters and DMX values.
MOVING LIGHT AUTO PATCH
The LP-X Series of consoles will locate the first available instrument slot and patch the fixture or fixtures
and assign the appropriate number of channels automatically.
3.5 FLOPPY DISK DRIVE
Standard PC formatted disks can be used for show storage as well as program & Fixture Library updates.
Program & Fixture Library updates can be downloaded from Leprecon's website.
1024 DMX CHANNELS
Four DMX-512 isolated outputs are provided for Moving Lights & dimmers, each universe has two outputs
for isolated cable runs.
EFFECTS GENERATOR
Instantly create patterns and effects with built in and user definable Focus, Beam, & Color Effects
Generator. Complex Position effects include pan & tilt, timing, & fixture sequence settings. Color & Beam
Effects include Fade, Hold, & Delay timing for each Color or Beam Label (Palette).

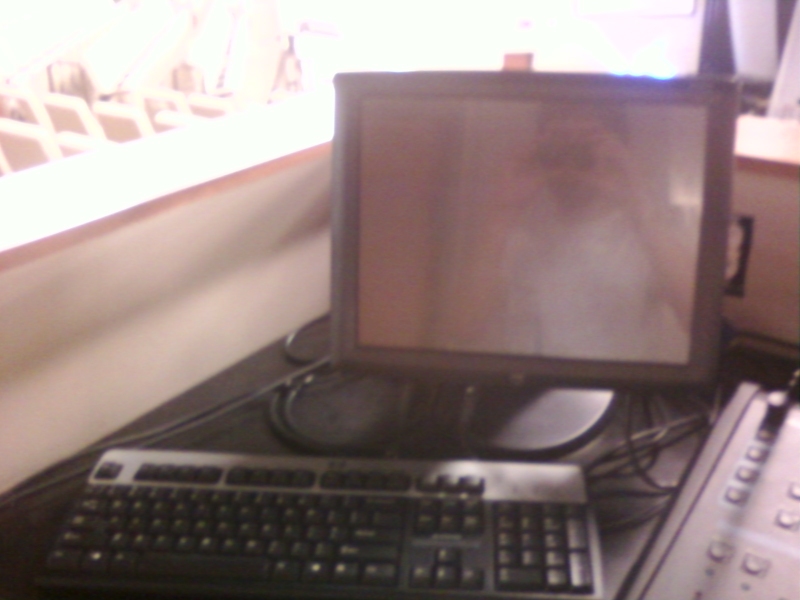

OPTIONAL TOUCH SCREEN INTERFACE
Active Matrix TFT 15 Flat Screen interface places fixtures, labels (palettes), effects, timing parameters,
plus much more at your fingertips. Antiglare/Impact Resistant glass-touch surface utilizing Surface Wave
Technology offers years of precise and reliable service.
SEPARATE FADE TIMES FOR COLOR, BEAM, INTENSITY, & FOCUS ATTRIBUTES
Gives the user the ability to quickly and easily program complex cues that incorporate separate fade rates
for CBIF attributes. Example: When a cue is executed, the color and beam looks may snap into place,
while the next focus position is completed over a 10 second period.
LIVE OVERRIDE FUNCTION
Allows the user to easily make immediate changes at a second's notice. This can be an invaluable
feature for those unexpected moments when the performer or speaker improvises during a show or
speech.

Used Leprecon

We are building a company that will survive and thrive in the long term, as we continue to develop and maintain the capacity to enable the rapid development, marketing, manufacturing and service of leading edge entertainment lighting products, in accordance with our vision. We do this by designing, building and marketing innovative, high quality, reasonably priced products.

Large Format Mixers - Large format mixers are audio mixers having more than 24 channels for input/output.. Used . . Used . ...

Dimmer - Dimmers are devices used to vary the voltage running to a light. By decreasing or increasing the voltage to the lamp it is possible to vary the intensity of the lamp. Changes in intensity are called “. Used . fades” and can be “fade ups” or “fade downs.” Although variable-voltage devices are used for various purposes, the term dimmer is generally associated with lighting control. Small dimmers are. Used . seen more and more in the home. These have traditionally been actuated by direct control. The advent of X-10 technology is making remote control of home dimmers possible. A digital signal is imposed on the ho...

Advanced Control Network - A new protocol designed to improve upon on the exisiting known limitations of the DMX512 protocol. It was developed by the ESTA (The Entertainment Services and Technology Association).

T. Used . he Advanced Control Network (ACN) is intended to provide the next generation standard for the distribution of data in lighting control networks.
ACN needs to do much more than just supe. Used . rcede DMX. Ideally, ACN will unify lighting control networking, allowing a single network to carry many different kinds of lighting-related data and to connect equipment from different manufacturers. ACN is no

Pattern - Pattern refers to the shape, quality and evenness of a lamp's output. The pattern of light an instrument makes is largely determined by three factors. The first are the specifics of the bulb, reflecto. Used . r and lens assembly. Different mounting positions for the bulb (axial, base up, base down), different sizes and shapes of reflector and the nature of the lens (or lenses) being used can all a. Used . ffect the pattern of light. Secondly, the specifics of how the lamp is focused affect its pattern. In Ellipsoidal Reflector Spotlights (ERS) and their derivatives (see below), there are two beams of light emit...

Zoom Lens - A mechanical assembly of lens elements with the capability to vary its focal length allowing for a closer or farther view of a subject, without changing perspective. Zoom lenses are often described b. Used . y the ratio of their focal lengths from longest to shortest. A 100mm to 400mm zoom may be described as a 4:1 or 4× zoom.

. Used . ...

Used Lighting Consoles

Lighting consoles are electronic devices for controlling multiple lights simultaneously from one point. Dimmers for controlling lighting intensity, automated lighting, fog machines and hazers are some of the special effects lighting devices controlled by a lighting board or lighting desk (other terms for lighting consoles). An electronic control protocol is used by lighting consoles to communicate with other devices in the lighting system. Some of these are DMX512, ACN and DMX-512-A. New protocols are being introduced as more sophisticated lighting systems become available. In the entertainment industry, where theatrical lighting design is mostly used, lighting consoles are usually found in the control booth, auditorium or the foyer. For this application, the most common protocol is DMX512. Lighting consoles are available in different sizes and complexities. A preset board, a conventional console for basic lighting systems, is used mostly for small setups. However, DJs may complement it with more advanced hybrid consoles. A moving light controller works with dimmers for controlling ordinary lighting. It also provides additional controls for automated stage lighting (also called intelligent lighting) to produce very complex lighting effects. Other types of lighting consoles include memory consoles, personal-control based controllers, and remote focus unit. The light board operator (also called the light op or board op) is the person who operates the lighting console. Depending on the scale and type of production, he can be the lighting designer or the stage manager. He or she is responsible for conventional or automated lighting fixtures as well as controlling video.
